Wire Mesh System
< >

Welded Wire Mesh

Material:Low carbon steel wire
Feature:Corrosion-resisting, oxidation-resisting
Application:Industry , Agriculture , Building


Welded wire mesh material: Low carbon steel wire, galvanized wire and stainless steel wire

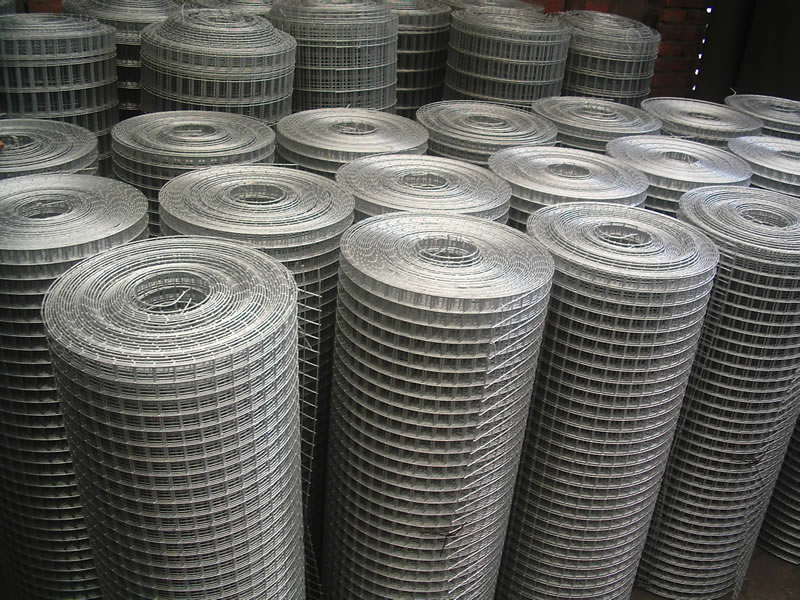

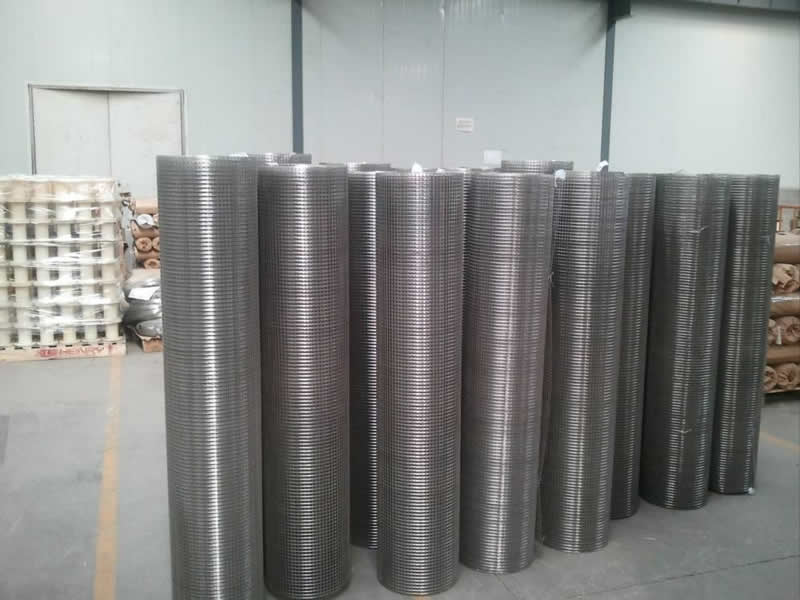

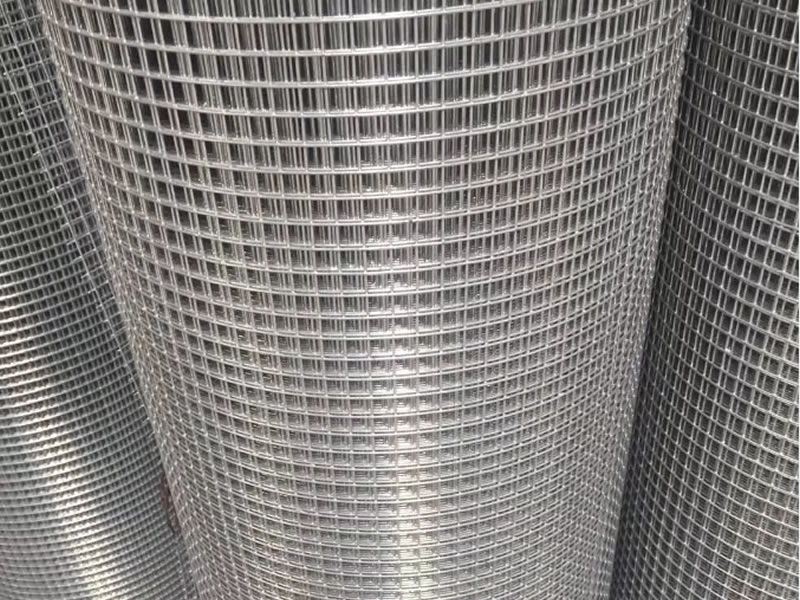

Welded wire mesh kinds: Electro galvanized welded wire mesh, hot dipped galvanized welded wire, PVC welded wire mesh, stainless steel welded wire mesh, BRC 3315 Mesh ( special welded wire mesh for Singapore and Malaysia Market .)

Welding characteristics:

Including galvanized before or after welding . It is divided into hot dipped , electro galvanizing , PVC coating , plastic sprayed . It has the characteristics of corrosion-resisting and oxidation-resisting.

Welded wire mesh Using:

Industry, Agriculture, Building, Transportation, Mine, Filed, Lawn, Cultivation, Fence Guade, Decorate, Machine Protection and etc.

Specification List of Welded Wire Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request

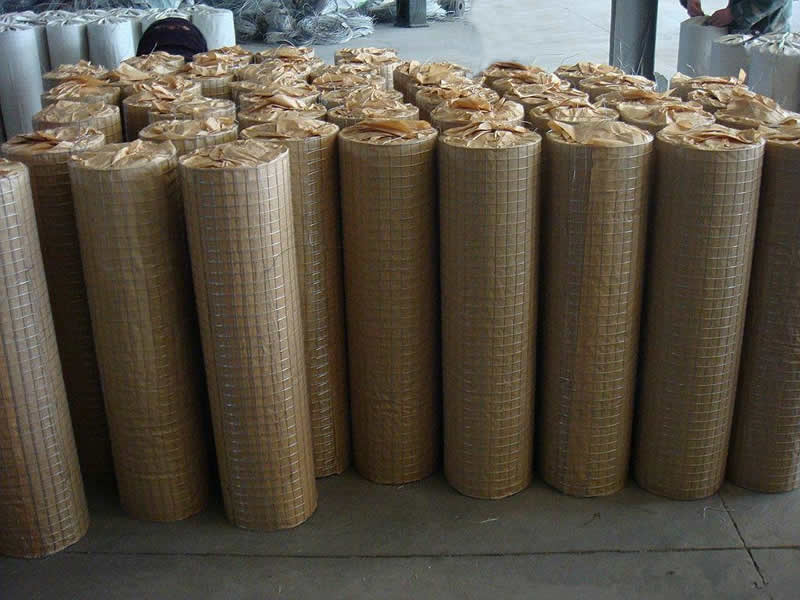

3,Packing: in waterproof paper in rolls. Custom packing available at request.
Galvanized Fencing Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 756mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.8m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.

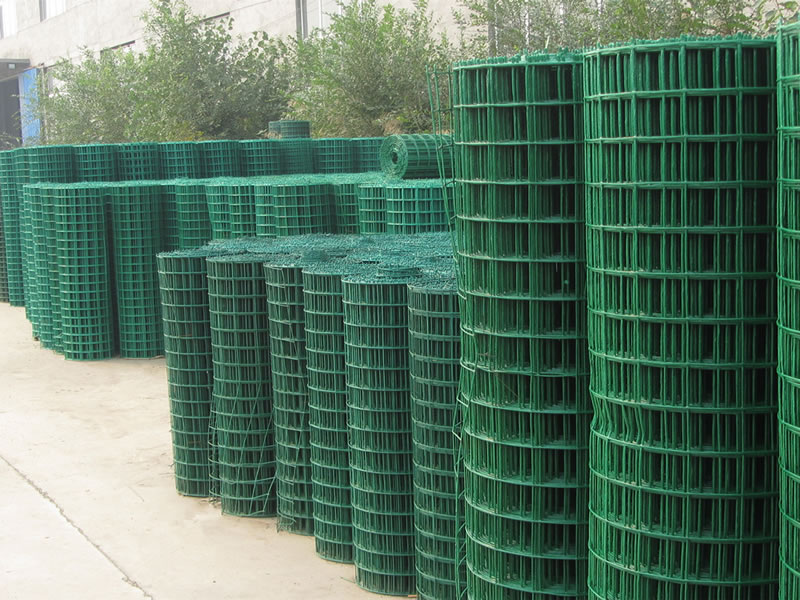

PVC Coated Welded Mesh
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1, Standard roll length: 30m;width: 0.5m to 1.2m
2, Special sizes available at request
3, Packing: in waterproof paper in rolls. Custom packing available at request.
