| Material: | Galvanized steel wire |
| Features: | Has good tenacity and elastcity |
| Application: | Security and fencing uses |
Barbed Wire divided into double twisted barbed wire and single twisted barbed wire.
Materials: High quality low carbon steel wire, (galvanized, plastic coated, plastic sprayed)
Colors for the PVC coated: Blue, green and yellow, etc.
Weaving and characteristics: Twist and weaving, (double twisted or single twisted ) Firm and beautiful.
Using: As barrier for lawn railways, expressways ect.
Application: Barbed Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

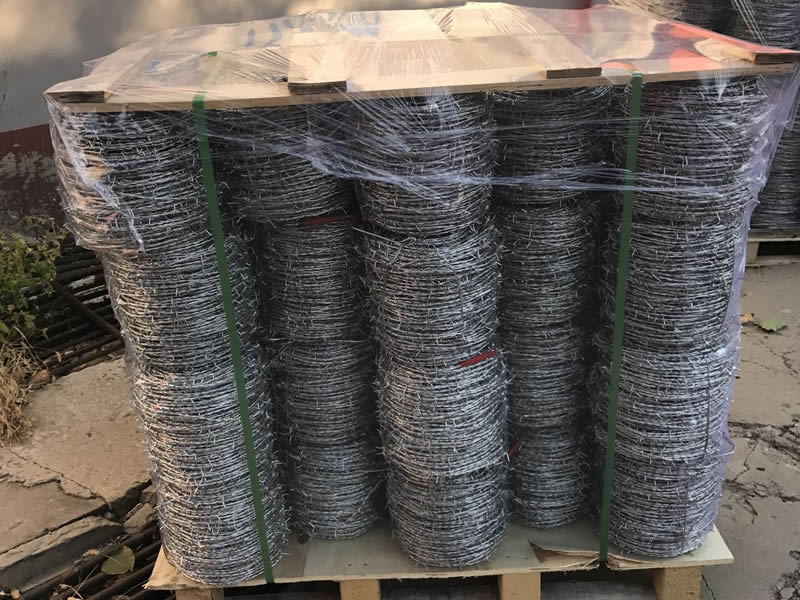

Packing: Packed in coil, then pallet or at request (In coil of 25 kilos or 50 kilos , lined with PVC strips, then wrapped with P.V.C or hessian cloth).
| Material | Weaving type | Wire gauge(SWG) main wire * barbed wire | Barbed Distance(mm) | Barbed Length(mm) | |
| 1.Electric galvanized barbed wire; 2.Hot-dipped galvanized barbed wire | 1.Single Twisted 2.Double Twisted | 10#*12#(3.2*2.6mm) | 75-150mm(that is 3 or 4 or 5 or 6) | 15-30mm | |
| 12#*12#(2.6*2.6mm) | |||||
| 12#*14#(2.6*2.0mm) | |||||
| 14#*14#(2.0*2.0mm) | |||||
| 14#*16#(2.0*1.6mm) | |||||
| 16#*16#(1.6*1.6mm) | |||||
| 16#*18#(1.6*1.2mm) | |||||
| 3.PVC coated barbed wire 4.PE barbed wire | Before coating | After coating | 75-150mm(that is 3 or 4 or 5 or 6) | 15-30mm | |
| 1.0mm-3.5mm | 1.4mm-4mm | ||||
| BWG11#-20# | BWG3#-17# | ||||
| PVC PE coating thickness: 0.4mm-0.6mm; Different colors or length are available at customers' request. | |||||
