Wire Mesh System
< >

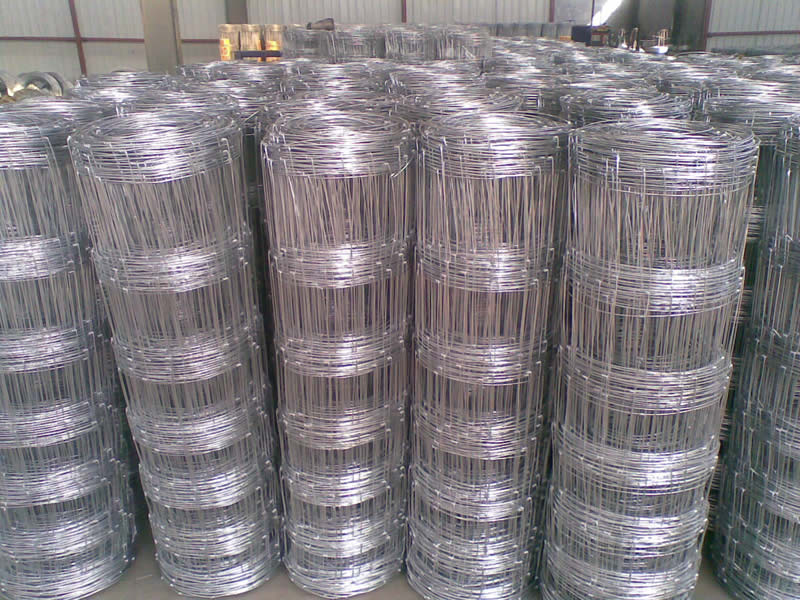

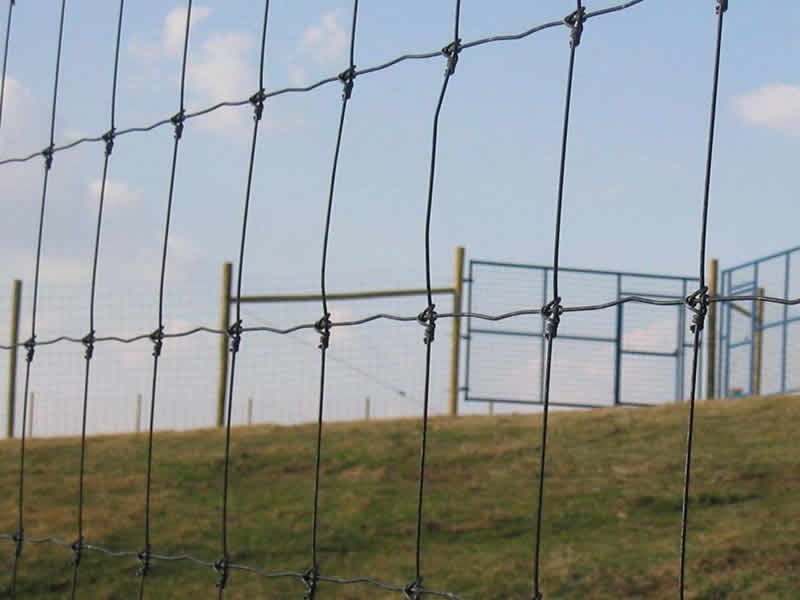

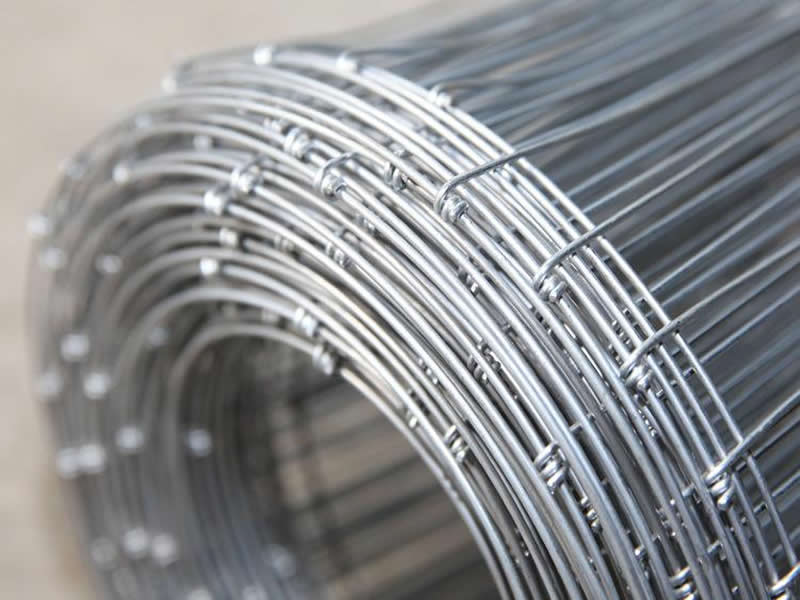

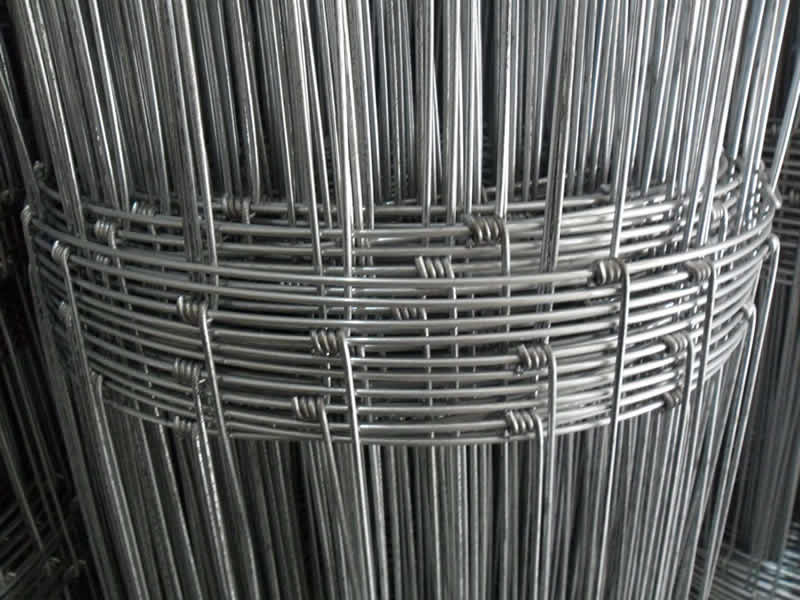

Field Fence

Material:Quality mild steel wire
Feature:Simple in structure,easy maintenance
Application:Grassland, farm, forest


Field fence also called farm fence, cattle fence and hinged joint fence.

It is widely used in enclosing  livestock, cattle, goat, sheep, and pastures.

Conforms to the landscape and minimizes damage caused by livestock and weather. Strong enough to withstand abuse from livestock and falling tree limbs.

Material: heavy galvanized steel wire

Features:

Flexible hinged joint
Heavy galvanized zinc coating
Top and bottom wire 2.5mm

Detailed description of field fence

1. Field fence we offer have innovative and firm structure, flat surface, uniform opening and good integration.

2. This product offers good flexibility; Good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure.

3. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, forestry, highway and environments

Benefits:

It is simple in structure; Easy maintenance; Short installation period; less weight; Easy for transport; Good ventilation.

Field Served: Grassland; Breeding; Forestry; Site fencing; Isolation of sites or projects.

Sequence Number Style Specification Total Weight(kg) Edge Wire Diameter(mm) Inner Wire Diameter(mm)
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.0
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0
7 10/150/1245/50 102+114+127+140+152+178+203+229 26 2.5 2.0
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0
10 11/150/1442/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0
