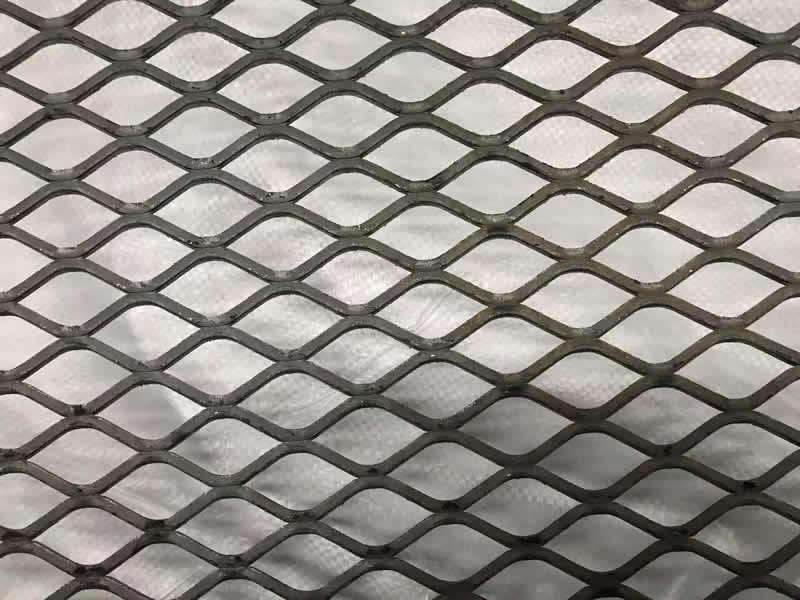

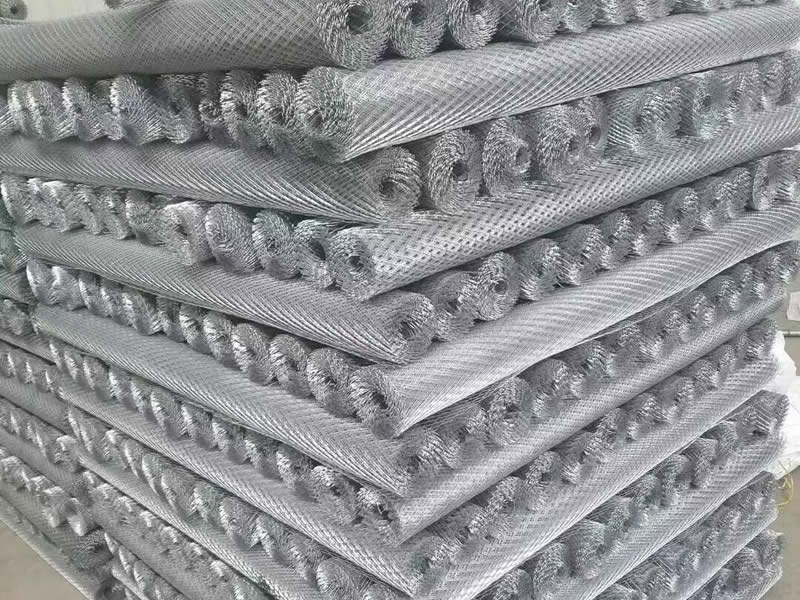

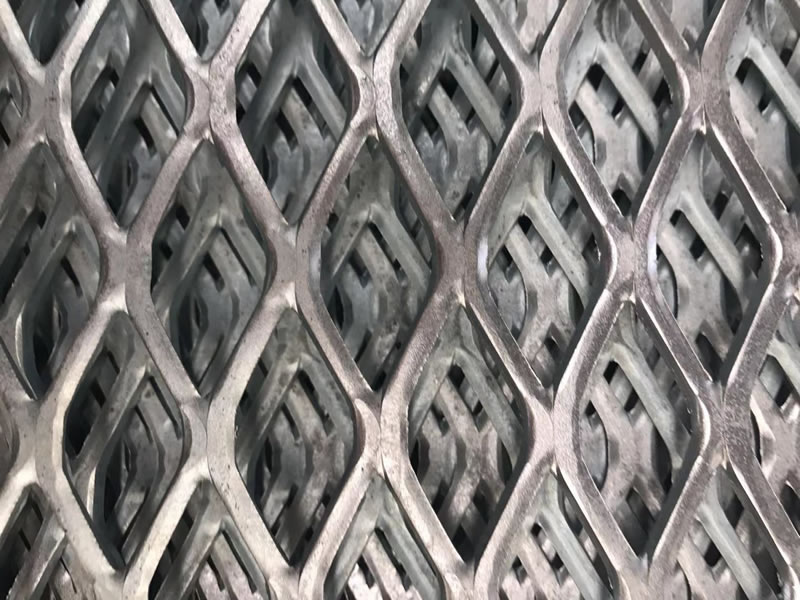

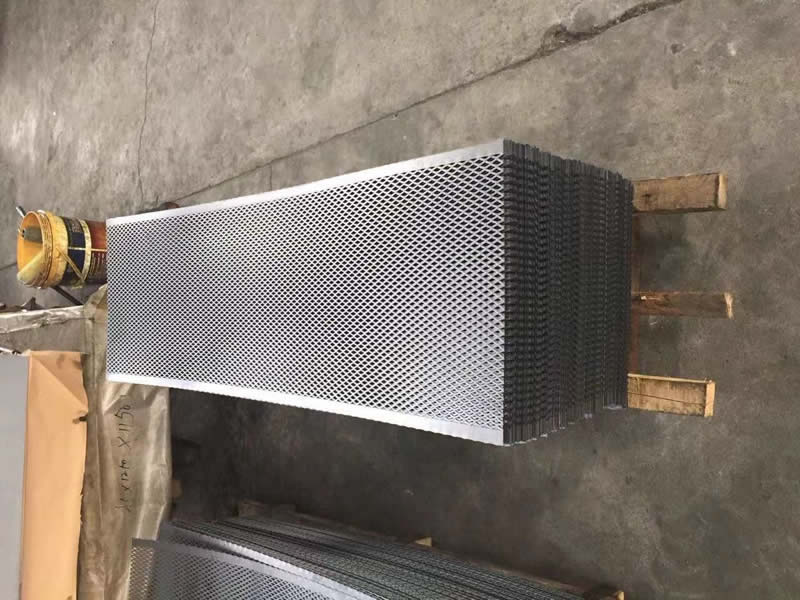

Expanded Metal Mesh is one type of metal screen. Its material can be galvanized plate, iron plate,stainless steel plate and aluminum plate,etc. It can be used in building, petroleum industry as the filters. Galvanized expanded metal can be used as the filters for the air and grease. About the powdered coated expanded metal, its surface can be coated by green color, white color, black color and sky blue.

Material:
    Stainless steel plate, Aluminum plate, Copper plate, Iron Plate, Galvanized plate and Al-Mg alloy, etc.
    Types of hole:Diamond, scale hole, hexagon, fancy, tortoise shell, etc.

LWD:4.5-200mm
SWD:2.5-80mm
Thickness:0.5-8mm
Strand width:0.5-10mm
SWM:Center from node to node of the length of the short diagonal.
LWM:Center from node to node of the length of the long diagonal.
SWD:The length of the short diagonal of the hole.
LWD:The length of the long diagonal of the hole.
Strand:Make a silk stem length of the metal plate used.
Bond:Two-node connections.

Surface treatment:
    PVC coated, Galvanized, Epoxy resin, anodic oxidation, anti-rush paint etc.

The following is some specifications for the expanded metal:
