Metal Wire System
< >

Galvanized Wire

Material:High quality low carbon steel wire
Feature:Has good tenacity and elasticity
Application:Construction, handicrafts, weaving nets


Materials: Made of high quality mild steel wire rods.

Wire gauge size: 8#-------38#.

According to the difference of zinc coating process. can be divided into (a). electro galvanized steel wire (b). hot-dipped galvanized steel wire.

Galvanized steel wire, also known as galvanized iron wire, finds most uses in binding of construction materials or weaving of galvanized wire mesh products.

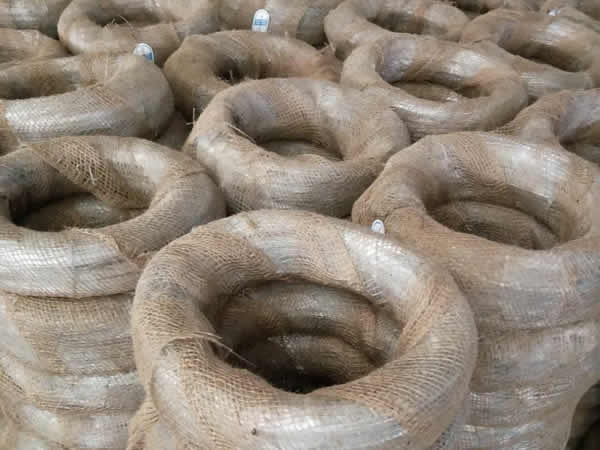

Packingplastic film inside, hessian cloth outside.

The galvanized iron wire is devided into hot dipped galvanized wire and cold galvanized wire(electro galvanized wire), made of high quality mild steel by drawing forming, acid picking and rust removing, high temperature annealing, hot dip galvanization and cooling.

Characteristics: Has good tenacity and elastcity, characterized by thick galvanizing layer and corrosion resistance.

Application

Mainly used in construction, handicrafts, weaving nets, communications equipment, medical equipment and brushes, cables, filters, high pressure pipe industry.

Galvanized Wire
Wire Gauge SWG(mm) BWG(mm) Metric(mm)
8 4.05 4.19 4.00
9 3.66 3.76 4.00
10 3.25 3.40 3.50
11 2.95 3.05 3.00
12 2.64 2.77 2.80
13 2.34 2.41 2.50
14 2.03 2.11 2.50
15 1.83 1.83 1.80
16 1.63 1.65 1.65
17 1.42 1.47 1.40
18 1.22 1.25 1.20
19 1.02 1.07 1.00
20 0.91 0.84 0.90
21 0.81 0.81 0.80
22 0.71 0.71 0.70
