| Material: | High quality stainless steel wire |
| Feature: | Wear-resistant, high intensity |
| Application: | Steel wire rope, filter material, handicrafts |

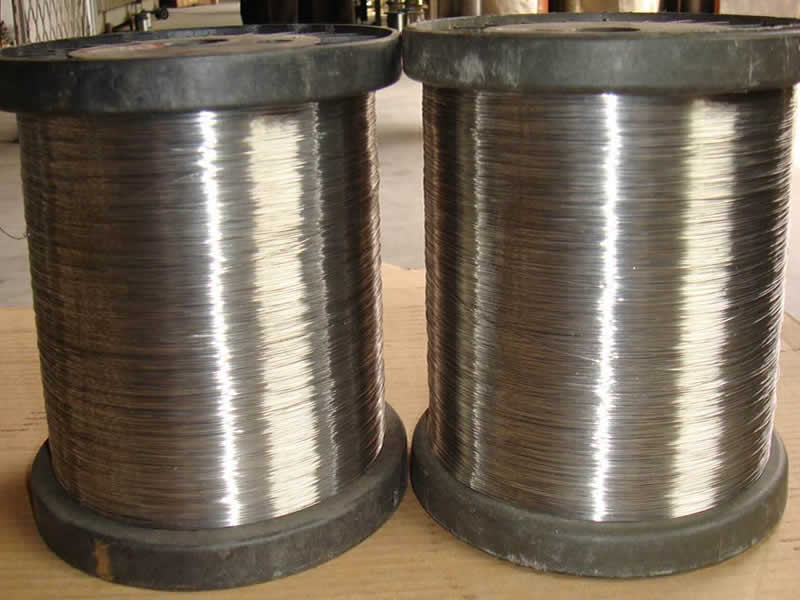

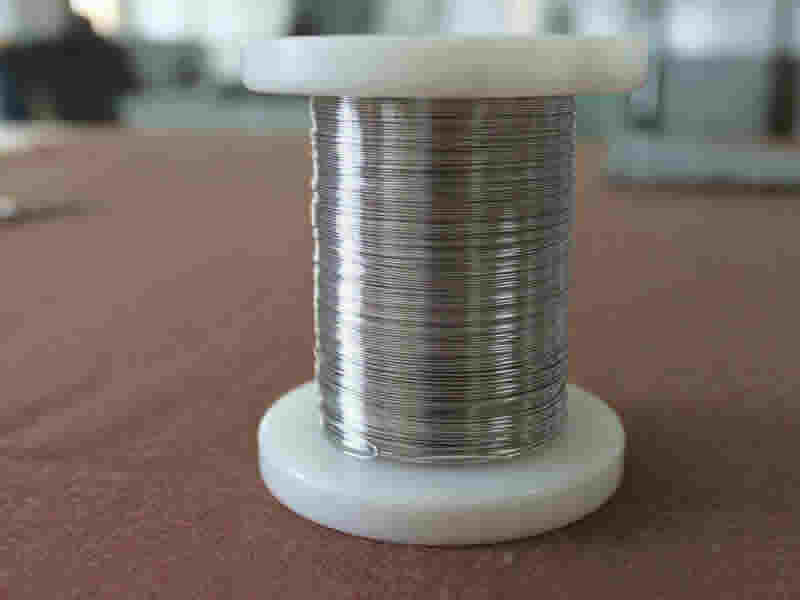

Stainless steel wire three types:
Stainless steel soft wire [ known as hydrogen retreat wire ] : bright surface , soft , non-magnetic , anti-fatigue, elongation and other characteristics.
Stainless steel lightly drawn wire: Bright surface, soft, anti-fatigue, there is a certain elongation characteristics.
Stainless steel cold drawn wire, smooth surface, good toughness, wear resistance
Stainless steel wire diameter: 0.03 - 5.0mm
Material: 301, 302, 304, 304L, 316, 316L, 310, 310S, 321 , etc.
Features of different stainless steel wire:
Stainless Steel Wire enjoys many featues, such as wear-resistant, high intensity, small Stretch ability; because the fine wire, oil and ink is easy to pass; Mechanical and chemical Properties of wire mesh is stably, also the dimension definition is stably.
Stainless steel wire is used in a number of industries including wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, making of handicrafts, etc.
| Wire Diameter(mm) | Tolerance(mm) | Max. Deviation Tolerance (mm) |
| 0.020-0.049 | +0.002/-0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003/-0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.200-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |
