| Material: | Low carbon steel wire |
| Feature: | Corrosion-resisting, oxidation-resisting |
| Application: | Construction, breeding, garden |

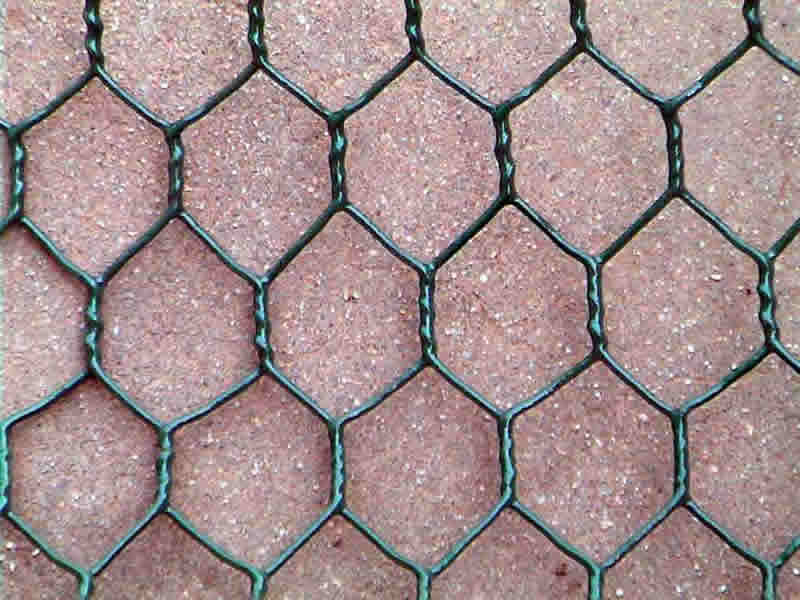

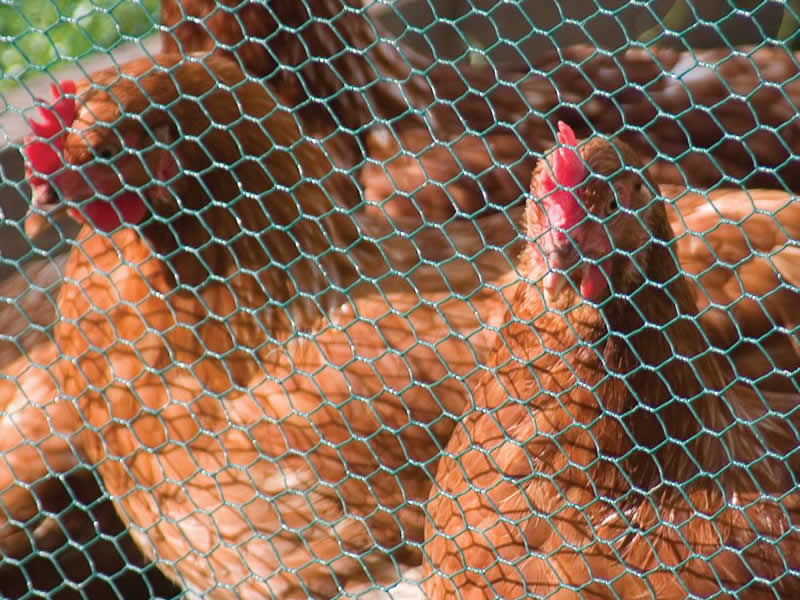

Hexagonal wire netting with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries.
Material: Low carton wire,stainless steel wire
Surface treatment: Electric galvanized,hot dip galvanized
Wire diameter: 0.8mm,1.0mm,1.2mm
Mesh size: 1/2",3/4",3/8",5/8",1" and so on
Width: 500mm,800mm,1000mm,1200mm
Length: 20m,25m,30m
| Galvanized hexagonal wire mesh in normal twist | ||
| Mesh size | Wire gauge (BWG) | |
| Mesh size | mm | |
| 3/8" | 10 | 32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21 |
| 1/2" | 13 | 27, 26, 25, 24, 23, 22, 21, 20 |
| 5/8" | 16 | 32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21 |
| 3/4" | 20 | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25 | 27, 26, 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 32 | 27, 26, 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40 | 23, 22, 21, 20, 19, 18 |
| 2" | 50 | 23, 22, 21, 20, 19, 18, 17, 16, 15, 14 |
| 2-1/2" | 2-1/2" | 21, 20, 19, 18 |
| 3" | 75 | 21, 20, 19, 18, 17, 16, 15, 14 |
| Galvanized hexagonal wire mesh in reverse twist | ||
| Mesh size | Wire gauge (BWG) | |
| Mesh size | mm | |
| 1" | 25 | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 32 | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40 | 23, 22, 21, 20, 19, 18, 17 |
| 2" | 50 | 23, 22, 21, 20, 19, 18, 17, 16 |
| 3" | 75 | 20, 19, 18, 17, 16 |
| PVC coated hexagonal wire mesh | ||
| Mesh size | Wire diameter (mm) | |
| Mesh size | mm | |
| 3/8" | 10 | 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm |
| 1/2" | 13 | 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm |
| 5/8" | 16 | 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm |
| 3/4" | 20 | 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm |
| 1" | 25 | 0.7 mm, 0.9 mm, 1.0 mm, 1.2 mm, 1.4 mm |
| 1-1/4" | 32 | 0.85 mm, 1.0 mm, 1.10 mm, 1.30 mm, 1.4 mm |
| 1-1/2" | 40 | 0.8 mm, 1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm |
| 2" | 50 | 1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm, 2.0 mm |
